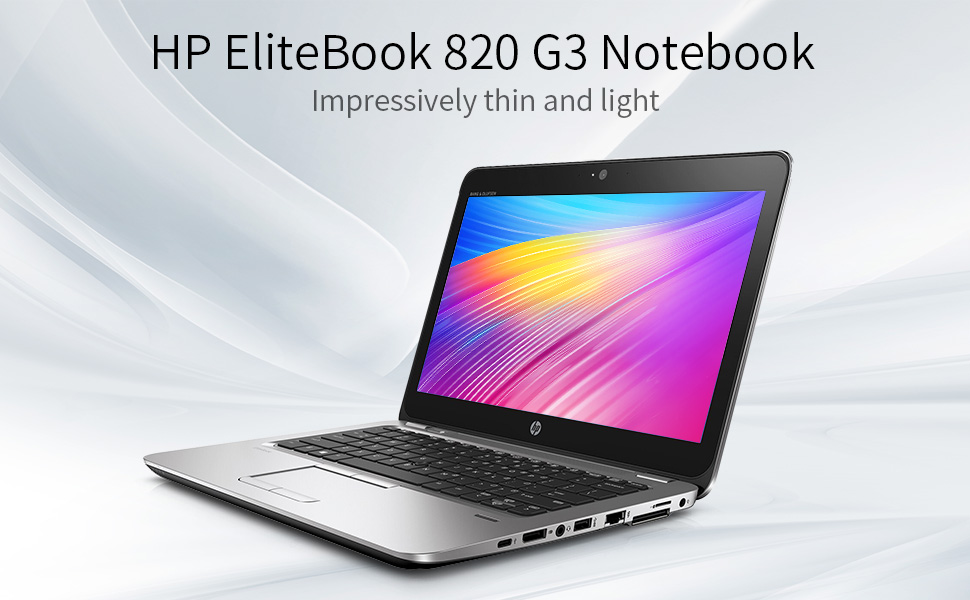

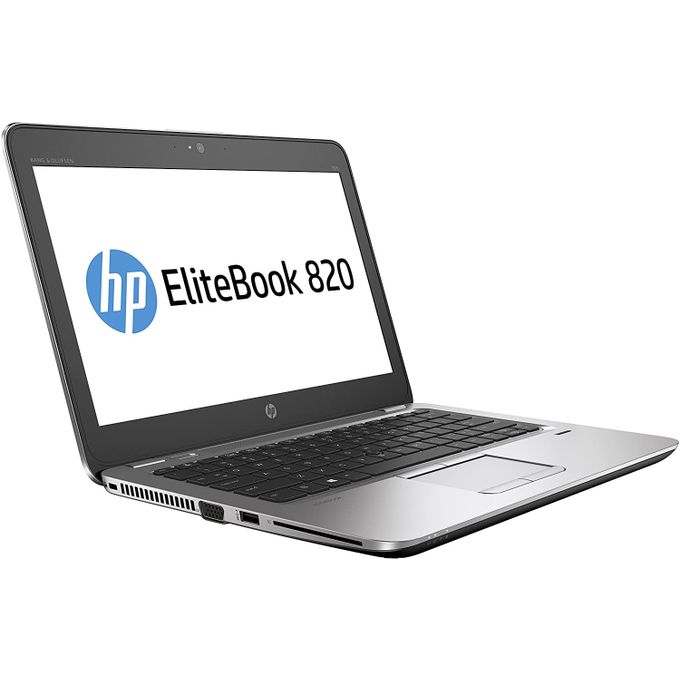

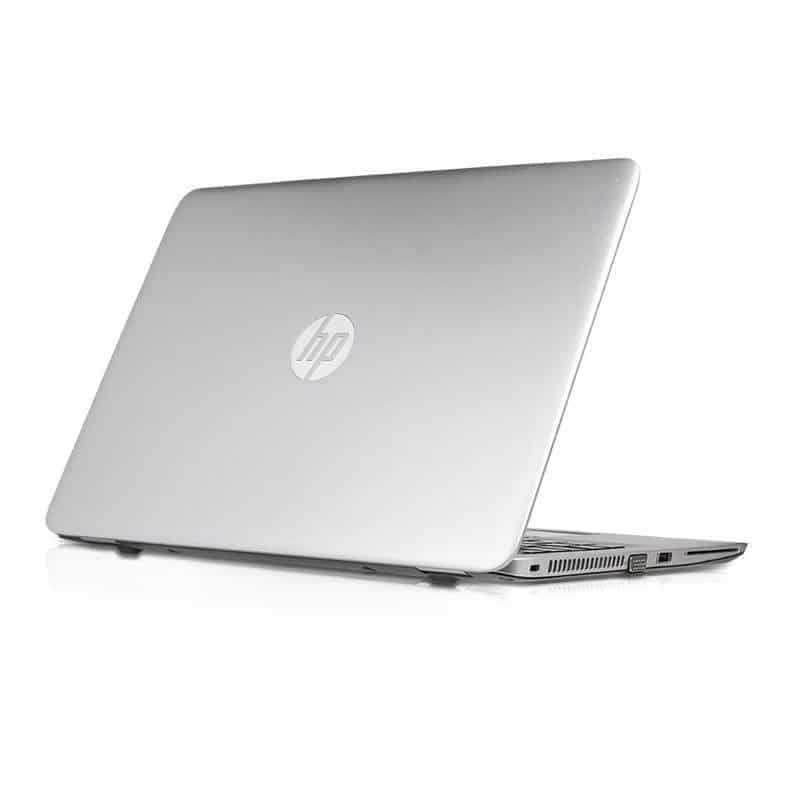

HP Elitebook 820 G3 Notebook PC, 12.5″ HD Display, Intel Core i5-6300U 2.4Ghz, 8GB RAM, 256GB SSD, 802.11 AC, Windows 10 Professional

Processor

 cores)

Intel Core i5-6300U (2.4 GHz, up to 3 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores)

Intel Core i5-6200U (2.3 GHz, up to 2.8 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores)

Chipset

Chipset is integrated with processor

Intel Core i5  Technology Capable

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select processors, an Intel Centrino Advanced-N or Ultimate-N WLAN module and a preinstalled Windows operating system. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active Management Technology (iAMT) offers built-in manageability and proactive security for networked notebook PCs, even when they are powered off or when the operating system is inoperable. It can help identify threats before they reach the network, isolate infected systems, and update PCs regardless of their power state.

Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-VPN) corporate network connection which is either cable or wireless LAN.

NOTE:

Some functionality of this technology, such as Intel Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future “virtual appliances” applications for Intel vPro technology is dependent on 3rd party software providers. Microsoft Windows required.

Integrated

Intel HD Graphics 520

Internal

12.5 in diagonal LED backlight HD1 Slim eDP SVA Anti-glare (1366 x 768)

12.5 in diagonal LED backlight HD1 Slim eDP SVA Anti-glare (1366 x 768) with camera

12.5 in diagonal LED backlight FHD UltraSlim eDP UWVA Anti-glare (1920 x 1080)

12.5 in diagonal LED backlight FHD UltraSlim eDP UWVA Anti-glare (1920 x 1080) with camera

12.5 in diagonal LED backlight FHD UltraSlim eDP UWVA (1920 x 1080) Touch with camera2

Port supports resolutions up to 1920 x 1200 external resolution at 60 Hz

Supports resolutions up to 4096 x 2160 at 60 Hz

Resolutions are dependent upon monitor capability, and resolution and color depth settings.

Supports 3 independent displays if used with optional HP Ultraslim Docking Station.

Hard drives

Supports SATA3, 7 mm

Primary storage SATA, 2.5 in hard drives

500 GB 7200 rpm self encrypting drive (FIPS-140-2) (Opal 2)

500 GB 7200 rpm hard drive

500 GB 7200 rpm self-encrypting drive (Opal 2)

1 TB 5400 rpm hard drive

500 GB hybrid, 8 GB cache

Mini card solid state drive

M.2 (NGFF) 2280 solid state drive

128 GB SATA-3 TLC solid state drive

180 GB SATA-3 MLC solid state drive

180 GB SATA-3 self-encrypting (Opal 2) MLC solid state drive

240 GB SATA-3 MLC solid state drive

256 GB SATA-3 TLC solid state drive

256 GB SATA-3 self-encrypting (Opal 2) MLC solid state drive

256 GB PCIe-3×4 NVMe solid state drive

512 GB SATA-3 TLC solid state drive

HP 3D DriveGuard (Windows and hard drives only)

The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive

NOTE:

For solid state drives or hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows 7) and up to 30 GB (for Windows 8.1 and 10) is reserved for system recovery software.

Standard

DDR4 PC4-17000 (Transfer rates up to 2133 MT/s)

Two SODIMM slots supporting dual-channel memory

Both slots are customer accessible/upgradeable

Supports

4096 MB total system memory (4096 MB x 1)

8192 MB total system memory (4096 MB x 2)

8192 MB total system memory (8192 MB x 1)

16384 MB total system memory (8192 MB x 2)

Maximum

Up to 16 GB

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE:

Improved system performance when memory is added in pairs (dual channel). Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

Wireless

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Optional Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

Broadband wireless (WWAN)

HP lt4120 Qualcomm Snapdragon X5 LTE Mobile Broadband Module

HP hs3110 HSPA+ Mobile Broadband Module

Wireless LAN (WLAN) Via M.2 Minicard

Intel Dual Band Wireless-AC 8260 802.11 a/b/g/n/ac (2×2) Wi-Fi and Bluetooth 4.2 combo (vPro)

Intel Dual Band Wireless-AC 8260 802.11 a/b/g/n/ac (2×2) Wi-Fi and Bluetooth 4.2 combo (non-vPro

Intel Wireless-AC 3165 802.11 a/b/g/n/ac (1×1) Wi-Fi and Bluetooth 4.0 combo (vPro)

Near Field Communication (NFC)

HP Module with NXP NFC Controller NPC100

Support for Miracast

Communications

Intel Ethernet Connection I219-V 10/100/1000 Ethernet (with Intel i3-6100U, i5-6200U, and i7-6500U)

Intel Ethernet Connection I219-LM 10/100/1000 Ethernet (with Intel i5-6300U and i7-6600U)

Audio

Audio by Bang & Olufsen

HP Clear Sound Amp

HP Noise Reduction Software

Digital Microphones (Dual Array)

2 Premium Stereo Speakers

Webcam

Optional 720p HD webcam

Power supply

HP 45 W Smart AC adapter (Not available for Asia, China and India)

HP 45 W 2-prong DC jack (Japan only)

HP 65 W Smart AC Adapter (Not available for Asia, China and India)

HP 65 W Smart AC Adapter EM (Asia, China and India only)

Power cord is configurable; either 1 or 1.8 m (3.2 ft or 6 ft)

Total length including external AC adapter is 2.86 or 3.66 m (9.2 ft or 12 ft)

Battery

HP 3-cell Long Life Li-Ion (46 WHr)

Battery life

TBD

Power conservation

Hibernation

Standby

ACPI compliance

Ports and slots

USB 3.0 charging port

USB 3.0 port

USB basic type-C

DisplayPort

VGA

RJ-45 / Ethernet

Docking connector

Headphone/microphone combo

AC port

NOTE:

Cables are not included.

Slots

External SIM slot

SD media reader slot supports SD, SDHC, SDXC

Internal card expansion

One NGFF slot (2230) for WLAN

One NGFF slot (2280) for SSD

12.5 in diagonal LED backlight HD1 Slim eDP SVA anti-glare (1366 x 768)

Outline dimensions: 291 x 181.9 X 3 mm

Active area: 276.61 x 155.52 mm

Weight: 250 g

Diagonal size: 12.5 in

Surface treatment: AG

Contrast ratio: 300:1 (typ) – AG

Refresh rate: 60 Hz

Brightness: 220 nits

Configuration: RGB stripe

Interface: eDP 1.2 (1 lane)

LCD Mode: TN

PPI: 125

Viewing angle: SVA 40/40/15/30

12.5 in diagonal LED backlight FHD UltraSlim eDP UWVA anti-glare (1920 x 1080)

Outline dimensions: 291 x 181.4 x 2.85 mm

Active area: 276.48 (W) x 155.52 typ. (H)

Weight: 230 g

Diagonal size: 12.5 in

Surface treatment: AG

Contrast ratio: 600:1 (typ) – AG

Refresh rate: 60 Hz

Brightness: 300 nits.

Format: 1920 x 1080 (FHD)

Configuration: RGB stripe

Interface: eDP 1.3 (2 lane)

LCD Mode: IPS/FFS/VA

PPI: 176

Viewing angle: UWVA 85/85/85/85

12.5 in diagonal LED backlight FHD UltraSlim eDP UWVA (1920 x 1080) touch with camera

Outline dimensions: 291 x 181.4 x 2.85 mm

Active area: 276.48 (W) x 155.52 typ. (H)

Weight: 230 g

Diagonal size: 12.5 in

Touch enabled: Yes

TSP Type: Captive

Surface treatment: AG

Contrast ratio: 600:1 (typ) – AG

Refresh rate: 60 Hz

Brightness: 300 nits

Format: 1920 x 1080 (FHD)

Configuration: RGB stripe

Interface: eDP 1.3 (2 lane)

LCD Mode: IPS/FFS/VA

PPI: 176

Viewing angle: UWVA 85/85/85/85
